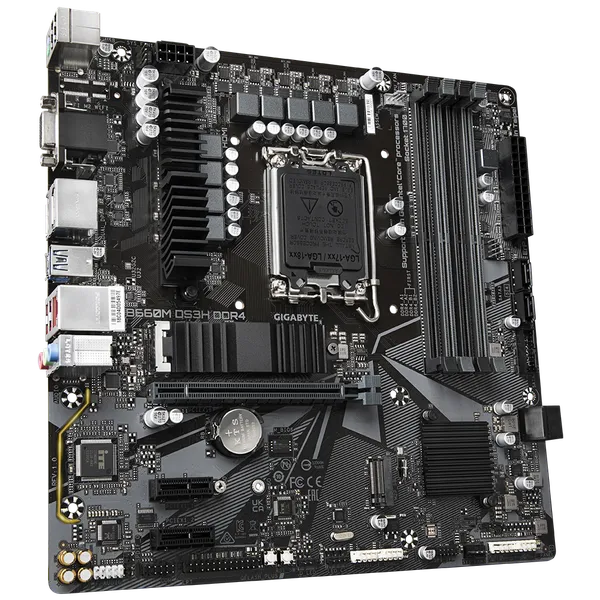

Mainboard GIGABYTE B660M DS3H DDR4

3.200.000đ

Mã sản phẩm:

GIGAB660M-DS3HD4

Chuẩn mainboard: Micro-ATX
Socket: 1700 , Chipset: B660
Hỗ trợ RAM: 4 khe DDR4, tối đa 128GB
Lưu trữ: 4 x SATA 3 6Gb/s, 2 x M.2 NVMe
Cổng xuất hình: 1 x HDMI, 1 x VGA/D-sub, 2 x DisplayPort

Bảo hành 36 tháng
*Giá đã có VAT

Tình trạng:

Còn hàng

Số lượng:

Mô tả
Bình luận

Model	B660M DS3H DDR4
CPU hỗ trợ	Intel LGA1700 socket: Support for 13th Generation Intel^® Core™ Processors and 12th Generation Intel^® Core™, Pentium^® Gold and Celeron^® Processors* L3 cache varies with CPU
Chipset	B660
RAM hỗ trợ	Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Khe cắm mở rộng	1 x PCI Express x16 slot, running at x16 2 x PCI Express x1 slots
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10
Cổng kết nối (Internal)	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x serial port header 1 x parallel port header 1 x S/PDIF Out header 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper

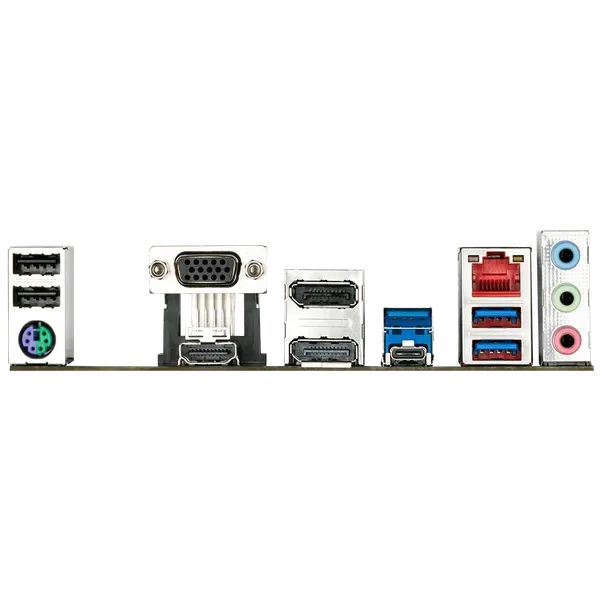

Cổng kết nối (Back Panel)	2 x USB 2.0/1.1 ports 1 x PS/2 keyboard/mouse port 1 x D-Sub port 1 x HDMI port 2 x DisplayPorts 3 x USB 3.2 Gen 1 ports 1 x USB Type-C^® port, with USB 3.2 Gen 2 support 1 x RJ-45 port 3 x audio jacks
LAN / Wireless	Realtek^® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Kích cỡ	Micro ATX Form Factor; 24.4cm x 24.4cm
